Understanding flows

Added in eventcatalog@2.5.0

Flows are a way to document business workflows in your organization. You can reuse your documented resources (e.g services, messages, data stores) in your flows.

An example of a flow would be when a user makes a payment to an e-commence system, this interaction triggers many parts of the architecture (services, external services, commands, queries and events):

1. User requests to make payment (e.g MakePayment Command)
2. Command is sent to Payment Service (e.g Payment Service)
3. Payment service will either accept or reject payment (e.g PaymentAccepted / PaymentRejected events)
4. Notification service listens to these events and sends Emails (e.g EmailSent Event)
5. User will be notified of payment success/failure

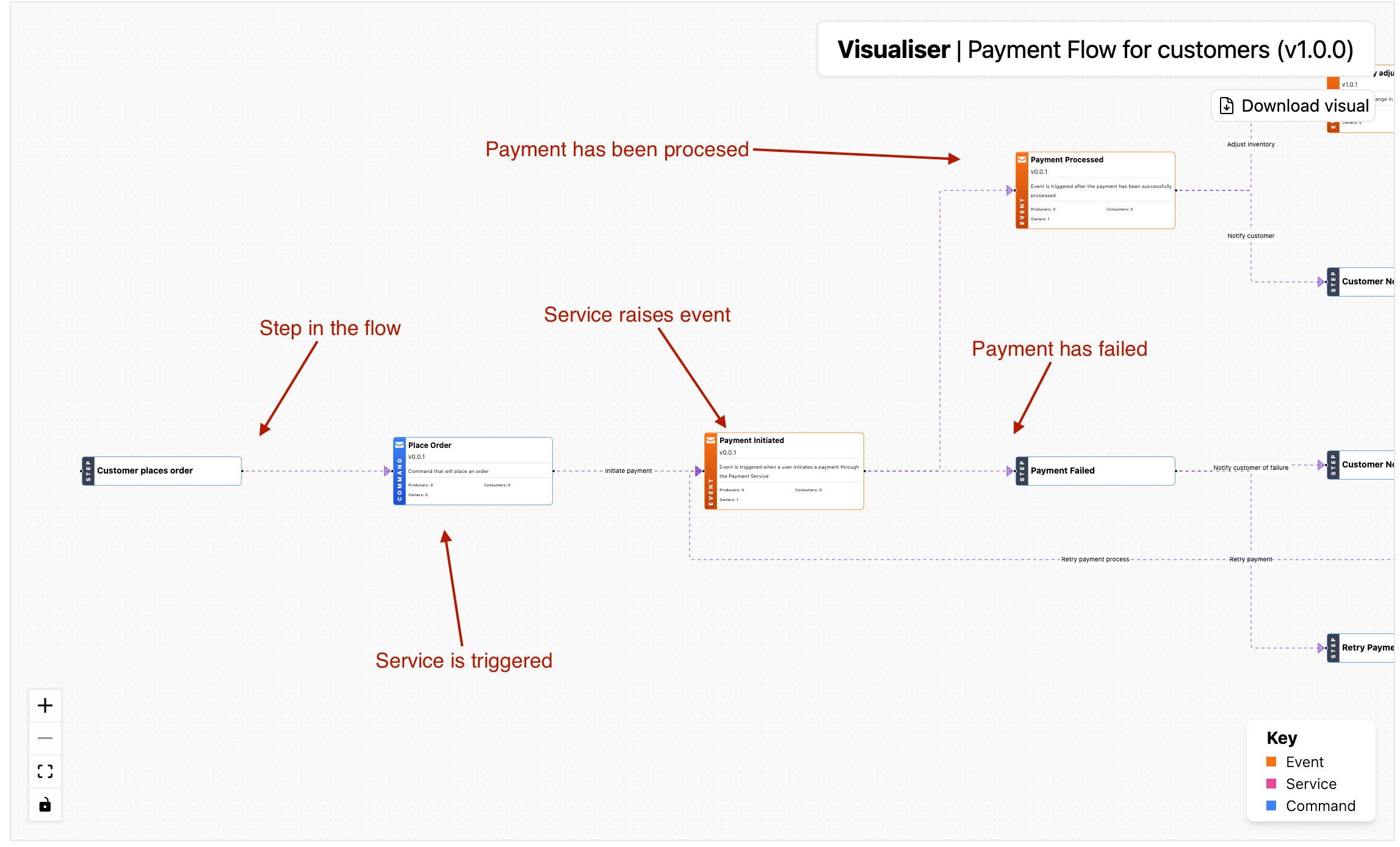

Example

You can see a payment flow example here.
