Customize tables

Added in eventcatalog@2.63.0

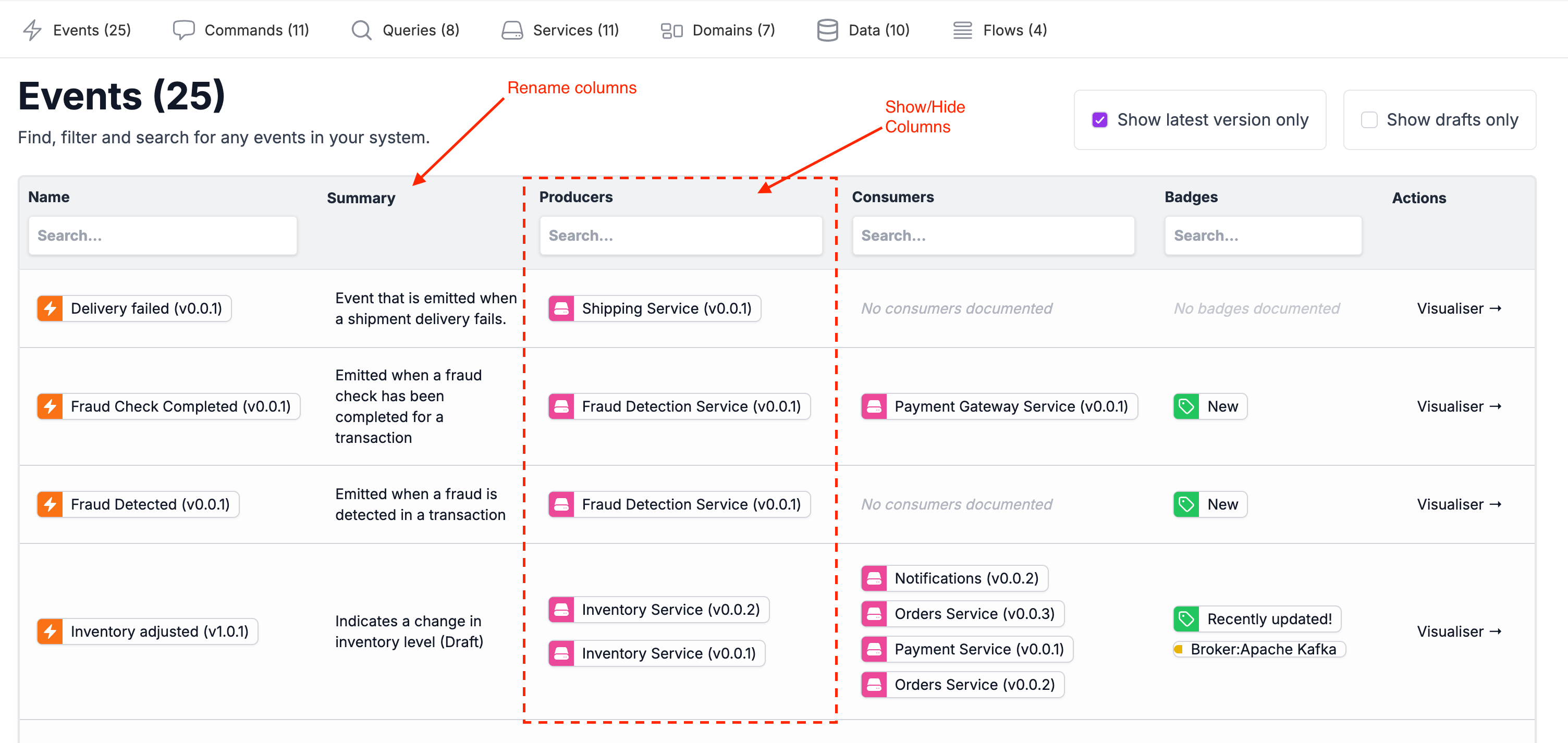

EventCatalog allows you to customize the columns and names on the Explore page, Teams and Users pages.

How to customize tables

You can customize the tables in EventCatalog by configuring them in your eventcatalog.config.js file.

Example of how to customize the tables for the events table page:

eventcatalog.config.js

events: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      summary: { visible: true, label: 'Summary' },
      producers: { visible: true, label: 'Producers' },
      consumers: { visible: true, label: 'Consumers' },
      badges: { visible: true, label: 'Badges' },
      actions: { visible: true, label: 'Actions' },
    }
  },
},

Configuration

List of available configuration options for the table columns:

Option	Type	Default	Description
visible	boolean	true	Whether the column is visible.
label	string	-	The label to display for the column.

Events, Queries and Commands Table

The key property is either events, queries, commands.

In this example we set the events table configuration.

eventcatalog.config.js

// ... other configuration ...
// change property to `events`, `queries`, `commands`
events: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      summary: { visible: true, label: 'Summary' },
      producers: { visible: true, label: 'Producers' },
      consumers: { visible: true, label: 'Consumers' },
      badges: { visible: true, label: 'Badges' },
      actions: { visible: true, label: 'Actions' },
    },
  },
}
// ... other configuration ...

Services Table

eventcatalog.config.js

// ... other configuration ...
services: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      summary: { visible: true, label: 'Summary' },
      receives: { visible: true, label: 'Receives' },
      sends: { visible: true, label: 'Sends' },
      badges: { visible: true, label: 'Badges' },
      actions: { visible: true, label: 'Actions' },
    }
  },
}
// ... other configuration ...

Domains Table

eventcatalog.config.js

// ... other configuration ...
domains: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      summary: { visible: true, label: 'Summary' },
      services: { visible: true, label: 'Owners' },
      badges: { visible: true, label: 'Badges' },
      actions: { visible: true, label: 'Actions' },
    }
  },
}
// ... other configuration ...

Data Table

eventcatalog.config.js

// ... other configuration ...
containers: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      summary: { visible: true, label: 'Summary' },
      writes: { visible: true, label: 'Writes' },
      reads: { visible: true, label: 'Reads' },
      badges: { visible: true, label: 'Badges' },
      actions: { visible: true, label: 'Actions' },
    }
  },
}
// ... other configuration ...

Flows Table

eventcatalog.config.js

// ... other configuration ...
flows: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      version: { visible: true, label: 'Version' },
      summary: { visible: true, label: 'Summary' },
      badges: { visible: true, label: 'Badges' },
      actions: { visible: true, label: 'Actions' },
    }
  },
}
// ... other configuration ...

Users Table

eventcatalog.config.js

// ... other configuration ...
users: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },
      ownedEvents: { visible: true, label: 'Owned Events' },
      ownedCommands: { visible: true, label: 'Owned Commands' },
      ownedQueries: { visible: true, label: 'Owned Queries' },
      ownedServices: { visible: true, label: 'Owned Services' },
      teams: { visible: true, label: 'Teams' },
      actions: { visible: true, label: 'Actions' },
    }
  },
}
// ... other configuration ...

Teams Table

eventcatalog.config.js

// ... other configuration ...
teams: {
  tableConfiguration: {
    columns: {
      name: { visible: true, label: 'Name' },]
      ownedEvents: { visible: true, label: 'Owned Events' },
      ownedCommands: { visible: true, label: 'Owned Commands' },
      ownedQueries: { visible: true, label: 'Owned Queries' },
      ownedServices: { visible: true, label: 'Owned Services' },
      actions: { visible: true, label: 'Actions' },
    }
  },
}
// ... other configuration ...

You can read the eventcatalog.config.js API reference for more information on the table configuration.
