Creating domains

Domains are a great way to group your documentation into logical units that can be represented in your organization.

EventCatalog Domains are inspired by the Domain-Driven Design approach.

In EventCatalog a domain is a logical unit that contains related services, entities and other resources.

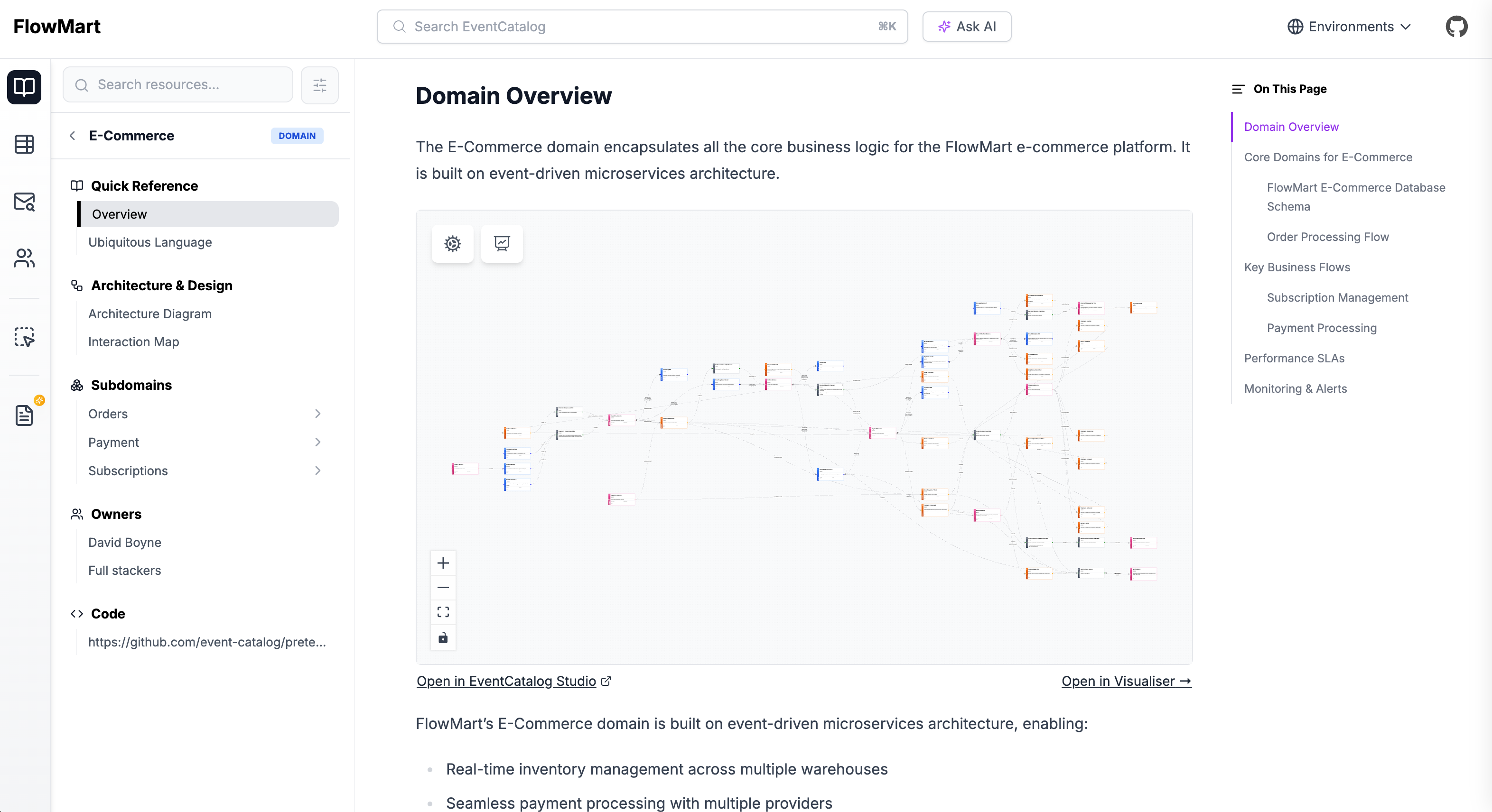

What do domains look like in EventCatalog?​

Example

Adding a new domain​

To add a new domain create a new folder within the /domains folder with an index.mdx file.

  • /domains/{Domain Name}/index.mdx
    • (example /domains/Orders/index.mdx)

The index.mdx contents are split into two sections, frontmatter and the markdown content.

Here is an example of what a domain markdown file may look like.

/domains/Orders/index.mdx (example)
---
# id of your domain, used for slugs and references in EventCatalog.
id: Orders

# Display name of the domain, rendered in EventCatalog
name: Orders

# Version of the domain
version: 0.0.1

# Short summary of your domain
summary: |
  Domain that contains order related information

# Optional owners, references teams or users
owners:
    - dboyne

# Optional services. Groups services into this domain.
services:
    - id: PaymentService
      version: 0.0.1

# Optional badges, rendered to UI by EventCatalog
badges:
    - content: New domain
      backgroundColor: blue
      textColor: blue
---

## Overview

Domain that contains all services that are related to the orders domain within FakeCompany.

<NodeGraph />

That's it!

Once you add your domain it will appear in your catalog.

Adding content​

Your domain page will render the markdown content you add to the file. To add content to your domain page, add markdown to the file.

/domains/Orders/index.mdx
---
id: Orders
version: 0.0.1
name: Orders
---

## Overview

This is your domain markdown....

You can add anything here...

Including EventCatalog components

<NodeGraph />

Using components​

EventCatalog supports MDX under the hood. This gives you the ability to use components inside your domain page.

You can find a list of EventCatalog components you can use here: EventCatalog components.
