Creating services

Services in EventCatalog are a great way to document which parts of your systems send and receive messages.

You can also add specifications (OpenAPI, AsyncAPI, GraphQL) to your services.

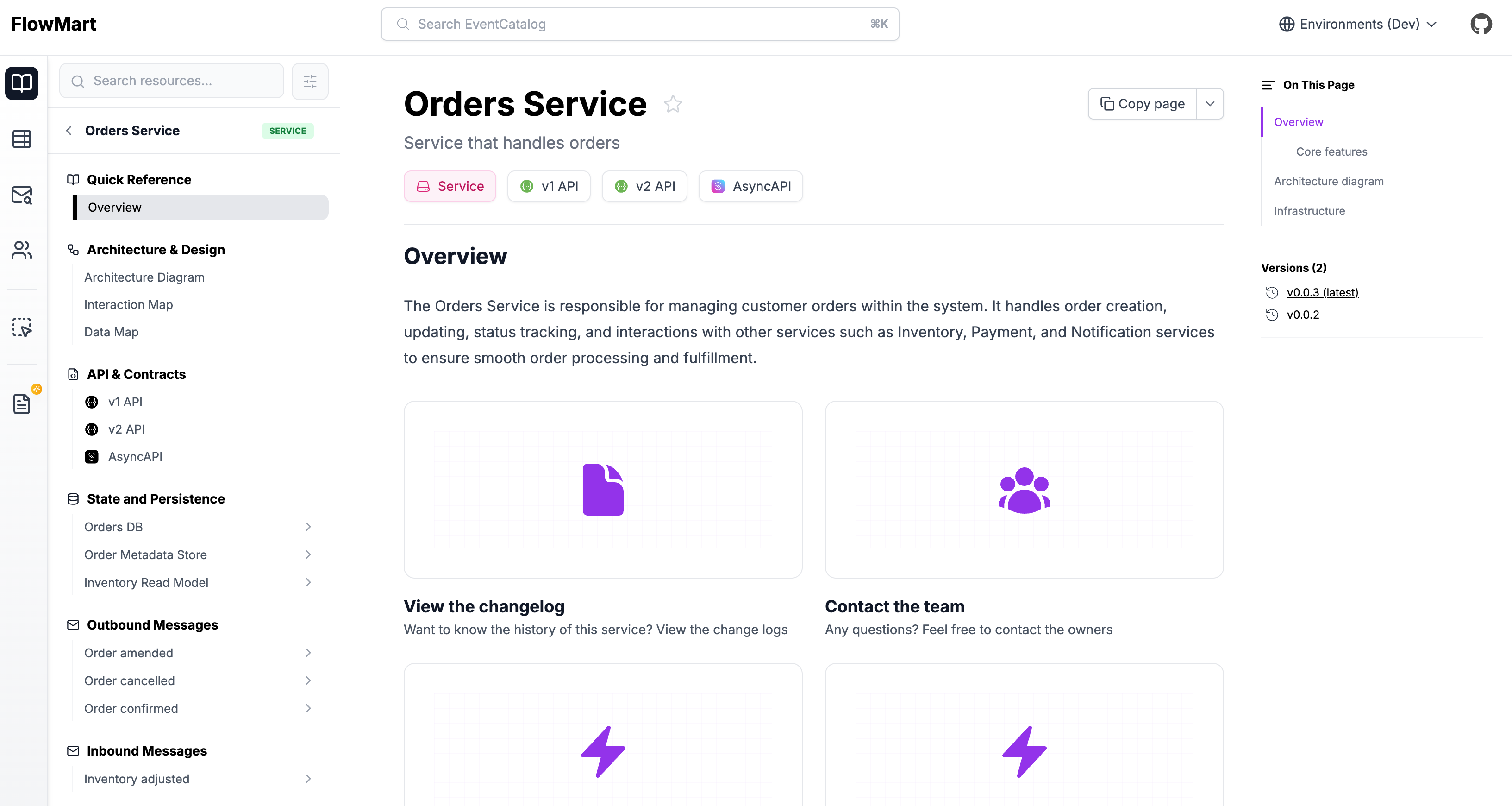

What do services look like in EventCatalog?​

Example

View Demo of an Orders service →

Adding a new service​

To add a new service create a new folder within the /services folder with an index.mdx file.

  • /services/{Service Name}/index.mdx
    • (example /services/Orders/index.mdx)

You can also specify services in your domains folder.

  • /domains/{Domain Name}/services/{Service Name}/index.mdx
    • (example /domains/Orders/services/OrdersService/index.mdx)

Here is an example of what a service markdown file may look like.

/services/Orders/index.mdx (example)
---
# id of your service, used for slugs and references in EventCatalog.
id: Orders

# Display name of the Service, rendered in EventCatalog
name: Orders

# Version of the Service
version: 0.0.1

# Short summary of your Service
summary: |
  Service that contains order related information

# Optional owners, references teams or users
owners:
    - dboyne

# Optional messages this service receives and it's version
receives:
  - id: InventoryAdjusted
    version: 0.0.3

# Optional messages this service sends and it's version
sends:
  - id: AddInventory
    version: 0.0.3

# Optional badges, rendered to UI by EventCatalog
badges:
    - content: New service
      backgroundColor: blue
      textColor: blue
---

## Overview

This orders service gives API consumers the ability to produce orders in the systems. Events are raised from this system for downstream consumption.

<NodeGraph />

Adding content​

With services you can write any Markdown you want and it will render on your page. Every service gets its own page.

Within your markdown content you can use components to add interactive components to your page.

Adding specifications to your service​

You can add GraphQL, OpenAPI or AsyncAPI specifications to your service.

You can read more about adding specifications to your service here.
